We evaluated several approaches for 3D Human Pose Estimation, including 3D lifting from 2D keypoints (both CNN-based and transformer-based), SMPL-based recovery methods (such as HMR and SMPLer-x), and direct 3D estimation techniques (such as stacked hourglass pose networks). SMPL-based recovery methods often suffer from long processing times, high computational costs, and minor positional offsets when mapping poses back to images. 3D lifting methods typically provide lower accuracy. On the other hand, direct 3D estimation methods frequently struggle with the lack of sufficient 3D ground truth data for training. After experimenting with various solutions, we chose direct 3D estimation for our product due to its accuracy, lower processing time requirements, and suitability for real-time mobile applications.

To address the shortage of ground truth 3D data and enhance the overall quality, we have enhanced our solution through several approaches:

1. Augmentation with Synthetic 3D Data: We incorporate synthetic 3D data generated from motion capture (mocap) systems to enrich our training dataset.
2. Rotoscoping Tools: We use rotoscoping tools to obtain real 3D data from video footage, providing additional ground truth for training.
3. Model Structure Improvements: We refine the architecture of the vanilla model to improve its performance and accuracy.
4. Two-Stage Training: We employ a two-stage training approach to incrementally improve model accuracy and robustness.
5. Integration of 2D and 3D Data: We use an end-to-end training strategy that organically combines 2D and 3D data to leverage the strengths of both modalities.
6. Enhanced Weight Initialization: We implement advanced weight initialization techniques to facilitate better convergence during training.
7. Score-Guided Diffusion Fine-Tuning: We apply score-guided diffusion methods for fine-tuning, which helps in refining model predictions and enhancing overall performance in depth dimension.

For the mocap data, we take the following steps to create a diverse and extensive synthetic dataset:

1. Retargeting and Rendering: We retarget mocap data to different character models, including male, female, and child figures, with various outfits and body shapes. This ensures a wide range of appearances and styles.

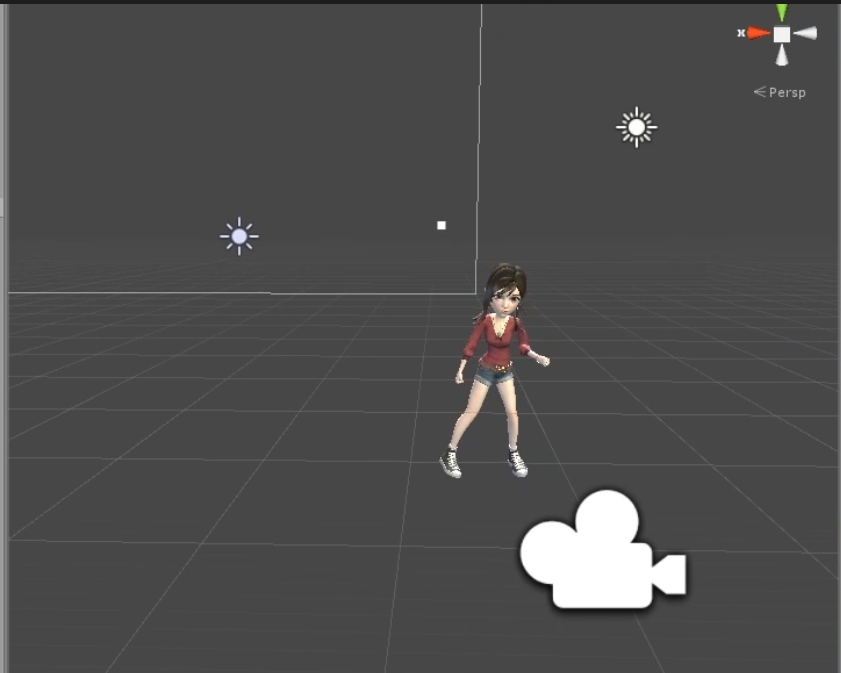

2. Scene Setup: We create a variety of environments such as beaches, offices, parks, and factories, incorporating different lighting conditions to simulate real-world scenarios.
3. Camera Angles: We use multiple camera angles to capture diverse perspectives of the scenes.

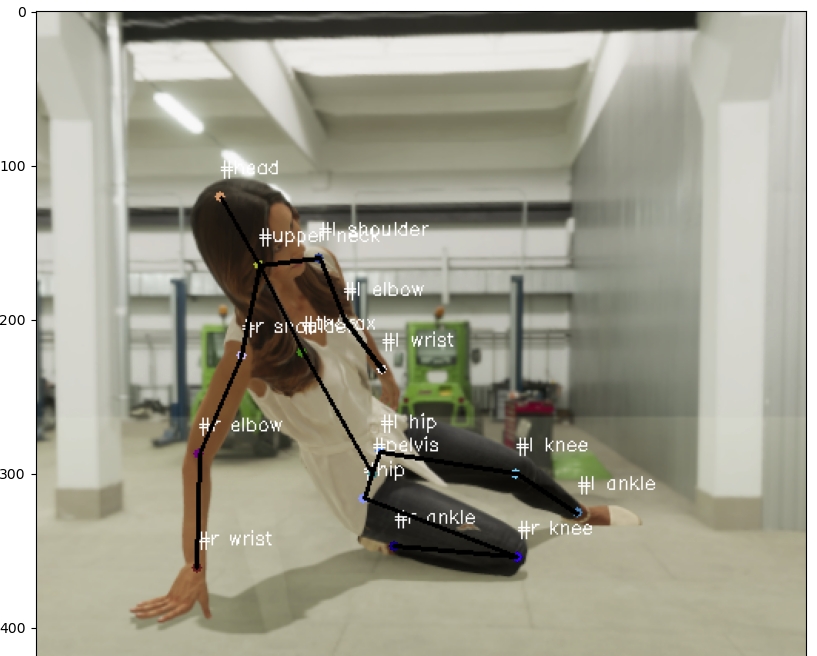

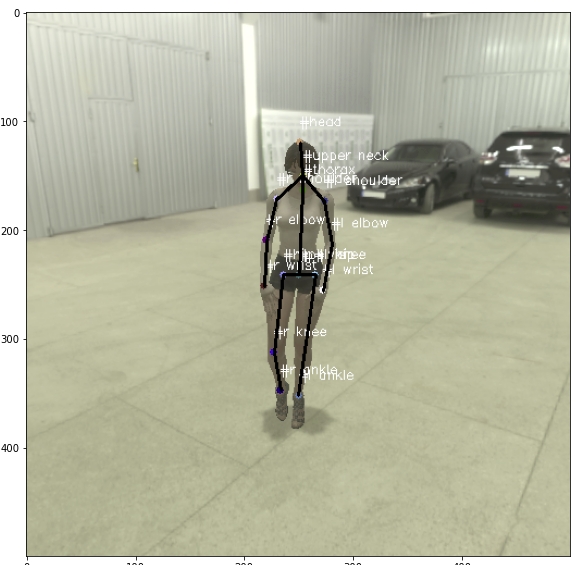

4. Camera Extrinsic Matrix: By applying multiple camera extrinsic matrices to the mocap's world coordinates, we generate a large volume of synthetic 3D data paired with RGB images.

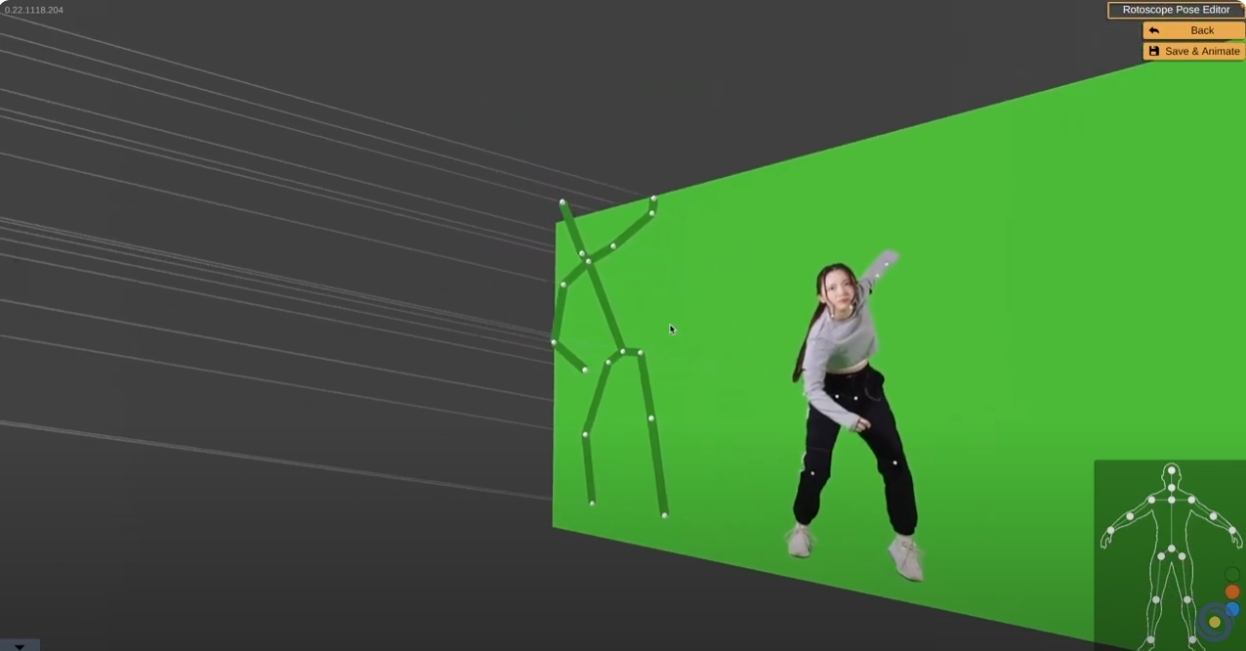

In our A3D pipeline, we utilize a 3D rotoscoping tool that allows users to correct inaccurate poses, providing additional ground truth for training.

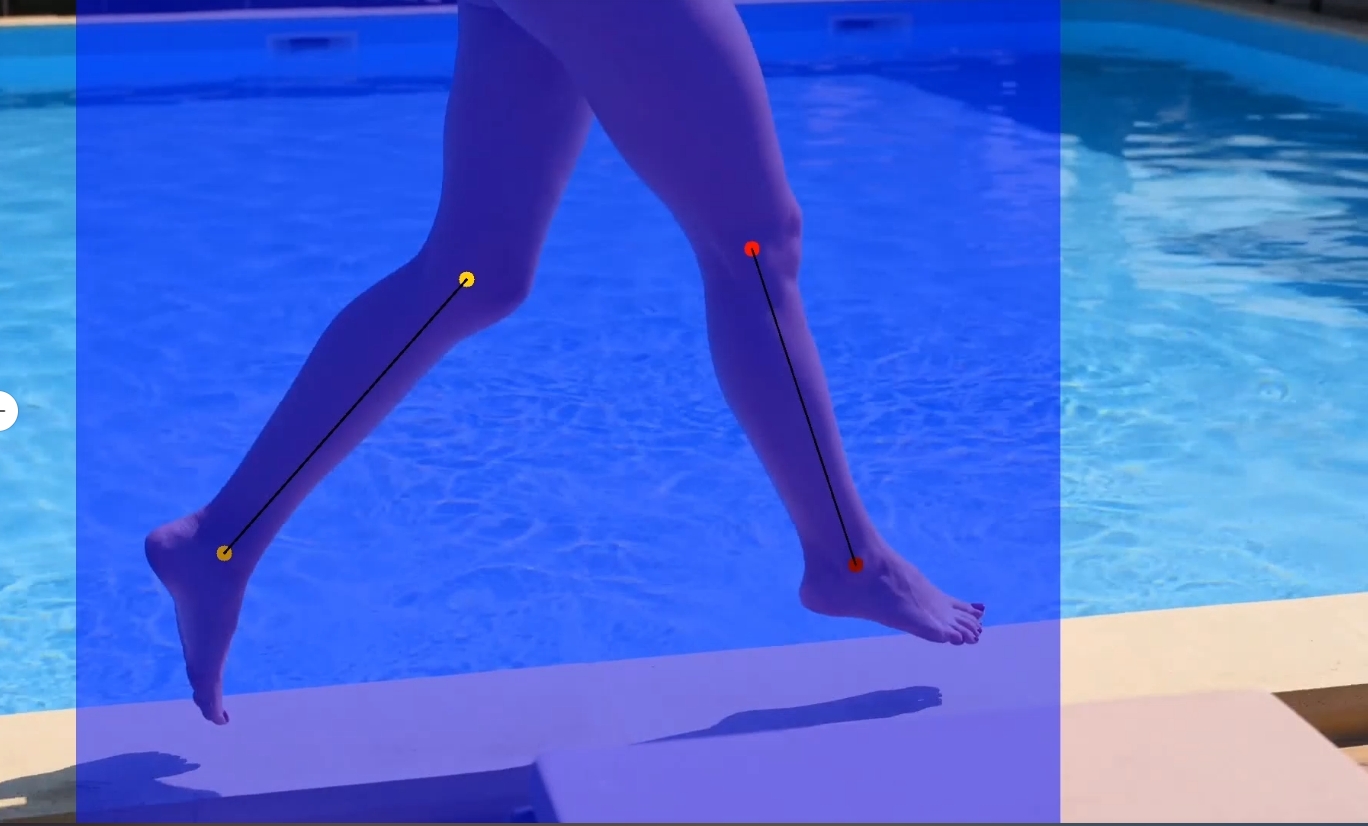

As shown in Figure 1, our experiments revealed that incorporating a classification block and using its loss as an auxiliary loss significantly improves the model's accuracy overall. Notably, for extreme cases such as high occlusion scenarios, our model demonstrates enhanced accuracy and stability in pose estimation compared to other models. Our joint training with the classification block achieves a 99.3% accuracy in detecting occluded joints. This precise additional metadata allows us to implement post-processing techniques that further enhance the performance of our product.

After conducting experiments, we found that splitting the training into two stages can further enhance the model's accuracy. In the first stage, our second hourglass block estimates a 2D heatmap instead of a 3D heatmap. Once the 2D model converges effectively, we use it as the warm-up weights for the second stage. In this stage, we integrate a case-specific weight initialization solution. For the layer responsible for generating the final 3D heatmap, which has a different shape due to increased channel size compared to the 2D version, we do not discard the original weights. Instead, we adapt these weights to initialize the expanded channels, as depicted in Figure 5

For instance, in our 2D version(First stage of training), the weight shape of the 2D scoring layer is \([16, 1024,1,1]\) where \(16\) represents the number of joints, and the kernel size \([1,1]\) indicating that this convolutional layer can be treated as a fully connected layer. The 3D scoring layer's weight shape is \([16 \times 64, 1024,1,1]\), where \(64\) represents the depth dimension, reflecting the spatial meaning.

To initialize the weights for the 3D scoring layer, we first consider each joint's weight in the 2D model as \([1, 1024]\). We need to extend this to \([64, 1024]\) to match the depth dimension. To achieve this, we calculate each joint's depth distribution from our training dataset, then apply a softmax function to ensure the distribution sums to 1. We repeatly multiply \([1, 1024]\) with \(softmax[i]\), where \(i=0,2,3...63\), then concatenate the results together. Consequently, the final weight for each joint is extended from \([1, 1024]\) to \([64, 1024]\). In other words, if we apply matrix multiplication between softmax result(\([1,64]\)) and 3D scoring layer(\([64,1024]\)), we will get a \([1,1024]\) Tensor all value equals to 2D scoring layer's weights.

The results demonstrate that by initializing the weights using this method, the model converged significantly faster and achieved higher accuracy according to our evaluation metrics. This approach not only accelerates the training process but also enhances the model's overall performance.

To enhance the robustness of our final model in real-world scenarios, we combine both 2D and 3D data for the second stage of training. For 2D data, we compute only the 2D loss, while for 3D data, we calculate both 2D and 3D losses. Additionally, we integrate classification loss into the backpropagation process. This loss structure helps the model generalize better across different data types and improves its overall performance.

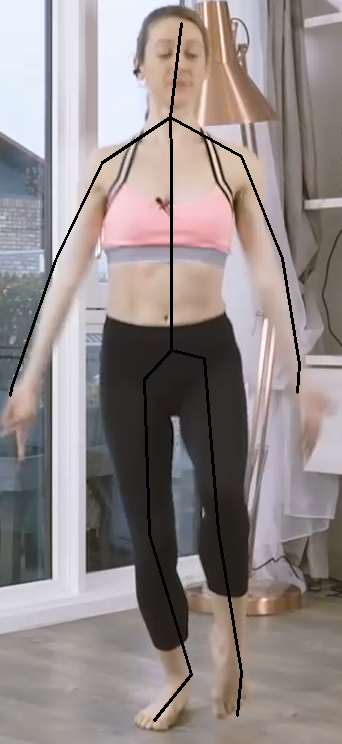

By training our model under this mechanism, it can generate highly accurate 3D keypoints for in-the-wild images. This approach ensures that the model handles diverse scenarios, including occlusions and challenging poses, making it robust and reliable for real-world applications.

We tested our model using the Human3.6M test set under Protocol 1. The results showed improvements in performance, with higher accuracy in 2D and lower MPJPE in 3D pose estimation compared to previous approaches, as shown in table 1.

We found that ScoreHMR shows great potential in further improving the pose quality, particularly in providing more realistic depth estimation based on human 2D keypoints. Our process involves converting the 3D keypoints to 2D keypoints, along with providing the bounding box result. After obtaining SMPL-based vertex results, we convert these back into 3D keypoints. Using ScoreHMR, we fine-tune the original 3D keypoints with the provided 3D keypoint results. Below, we present an example illustrating the before and after effects of ScoreHMR fine-tuning on pose quality.

We developed a discriminator specifically for pose quality assessment. The discriminator's output score serves as a realism judgment tool, helping to evaluate and ensure the generated poses align with realistic human movements. This score allows us to identify and refine poses that may appear unnatural or deviate from expected motion patterns.

We implemented distillation learning to train a smaller, lightweight model capable of running in real-time on mobile devices.
